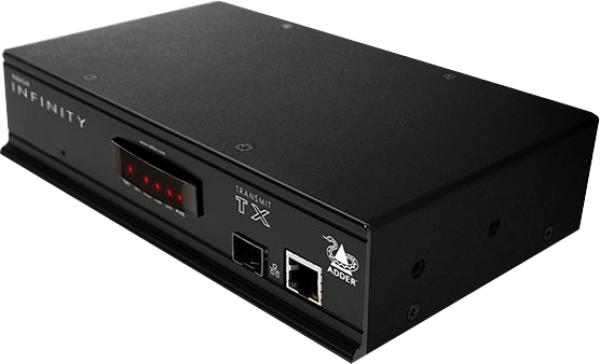

ALIF1104T SENDER. HDMI, USB und Audio, Max. 2560x1600@60Hz. Benötigt Empfänger. Option: Glasfaser SFP Modul.
Beschreibung

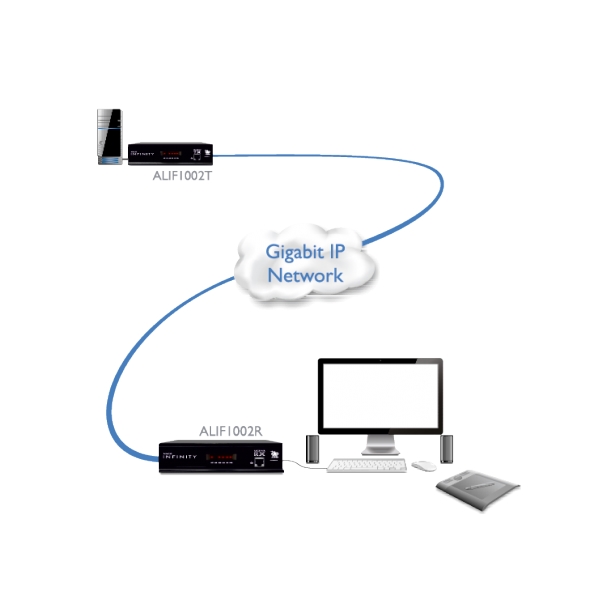

Als Teil der ADDERLink? INFINITY-Reihe ist der ADDERLink INFINITY 1002 ein leistungsstarker KVM-Extender, der es Ihnen ermöglicht, Ihre kritische Computerhardware in einer sicheren und temperaturkontrollierten Umgebung zu platzieren, isoliert von der Arbeitsstation des Benutzers. Konfigurierbar als Single Head oder Single Link, bietet dieser Extender pixelgenaues Video mit minimaler Verzögerung über eine Entfernung von bis zu 10 km. Dieser KVM-Extender kann als Punkt-zu-Punkt-Extender verwendet werden oder in ein größeres Matrixsystem integriert werden, wenn er mit dem ADDERLink INFINITY Manager (AIM) kombiniert wird.
Weitere Daten
Perfect digital video: uncompressed video extension and pixel perfect digital video up to 24 bits per color at a maximum of 1920x1200 single link or single head with real time control
Digital Stereo Audio: digitally delivered crystal clear audio across the network
Distribution: of DVI-D, USB, audio and bidirectional RS232 across up to 10km
Power redundancy: the units can detect whether the network is in operation and will utilize the second network port is failure detected
EDID management: Extended Display Identification Data (EDID) enables the remote system to exactly mirror the date coming from the source monitor
Plug and Play: the ADDERLink INFINITY range is delivered in a zero config state so they work as soon as they are connected, without the need for drivers or software
Robust yet lightweight: small form factor, rack mountable device
USB True Emulation: USB 2.0 enables connection to any USB human interface device from mice and keyboards through to graphics tablets, jog shuttles, joysticks and 3D explorers
Video Resolutions
The system supports either single link or single head DVI resolutions to a maximum of 1920 x 1200@ 60Hz
Audio
The system delivers analogue stereo audio (Line in, Line Out) via digital signalling between any transmitter/receiver pair.
Audio output of any transmitter can be multicast to many receivers.
Standards
Supports USB2.0 devices (Low, Full and High speed). The system has a security feature, which allows the blocking of non-HID devices. Isochronous devices are not supported (i.e. USB audio or video devices).
Cable Requirements
CATx (up to 100m/330ft) or fiber (requirements dependent)
Environmental
0 to 40ºC / 32 to 104ºF
Connectors - Local Unit

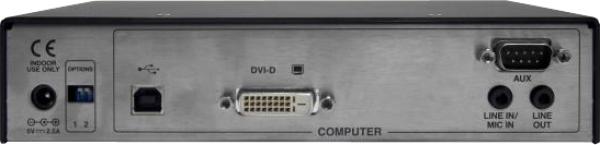

1 x DVI-D, audio 3.5mm in, audio 3.5mm out, USB type B, RS232 9-pin D-type. 1 x 8p8c and 1 x SFP for ADDERLink INFINITY network connections.
Mechanical
1U compact case, robust metal construction. 198mm/7.92" (w), 44mm/1.76" (h), 150mm/6.0" (d), 1.1kg/2.7lbs.
Power
2.5mm DC jack (power adapter included),100-240VAC 50/60Hz, 0.8A, input to power adapter. 5VDC 20W output from power adapter.
Software
All known operating systems.
